145 X4S
| Specifications | ||
|---|---|---|
| Operating Weight | 33,900 lbs | 15.4 metric tons |
| Engine Make | Isuzu | Isuzu |
| Engine Model | AR-4JJ1X | AR-4JJ1X |
| Net HP | 102 hp | 76.4 kW |
| Max Dig Depth | 18' 1" ft/in | 5.5 m |
| Reach at Ground Level | 26' 9" ft/in | 8.14 m |
| Arm Force | 14,800 lbf | 66.0 kN |
| Bucket Digging Force | 21,400 lbf | 95.0 kN |
| Bucket Capacity, SAE Heaped | 0.15 - 1.00 yd3 | 0.11 - 0.76 m3 |
| Max Travel Speed | 3.5 mph | 5.6 km/h |
Advanced Technology
- Height and Depth Alarm
- Payload
- Digital Level
Top 10 Reasons to Buy an X4S
Thinking of buying a Link-Belt 145 X4S? From the full-size spacious cab and 10” machine monitor to superior fuel efficiency – find out the Top 10 Reasons to Buy an X4S.

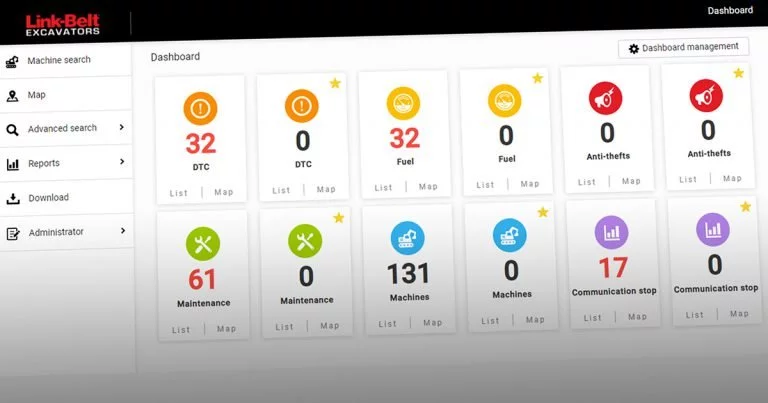

RemoteCARE®
The Link-Belt 145 X4S comes standard with a new dualband modem to improve RemoteCARE communication and functionality with greater range and real-time data capabilities – providing 24/7 remote monitoring with zero subscription charges or fees.
Standard Warranty
The Link-Belt 145 X4S hydraulic excavator is fully backed by a 5-year/5,000-hour full machine warranty and a 5-year / 10,000-hour Structural Warranty.
