210 X4 Heavy Duty – Link-Belt Excavators
210 X4 Heavy Duty

210 X4 Heavy Duty

SAE Net Horsepower
160 HP (119.3 kW)

Operating Weight
56,900 lbs (25.8 metric tons)


Specifications
Units US Metric
Operating Weight56,900 lbs25.8 metric tons
Engine MakeIsuzuIsuzu
Engine ModelAR-4HK1XAR-4HK1X
Net HP160 hp119.3 kW
Max Dig Depth17' 3" ft/in5.25 m
Max Working Height36' 3" ft/in11.05 m
Reach at Ground Level31' 8" ft/in9.66 m
Max Ground Clearance2' 2" ft/in0.67 m
Arm Force25,100 lbf112 kN
Bucket Digging Force34,600 lbf154 kN
Bucket Capacity, SAE Heaped0.64 - 1.75 yd30.49 - 1.34 m3
Max Travel Speed3.1 mph5 km/h
Purpose Built

The Link-Belt 210 X4 Heavy Duty excavator is factory equipped with a high-wide and heavy-duty undercarriage with larger components for added durability, strength, and performance. Compared to our standard excavators, these models have an 11-17% wider stance and 40-50% higher ground clearance giving them excellent stability and increased lift capacities to handle the rugged work they were designed for.

210 X4 Heavy Duty
RemoteCARE®

RemoteCARE lets you remotely monitor and track machine location, operational performance, working status and periodic
maintenance requirements – now at no cost to you. For desktop and mobile!

Learn More

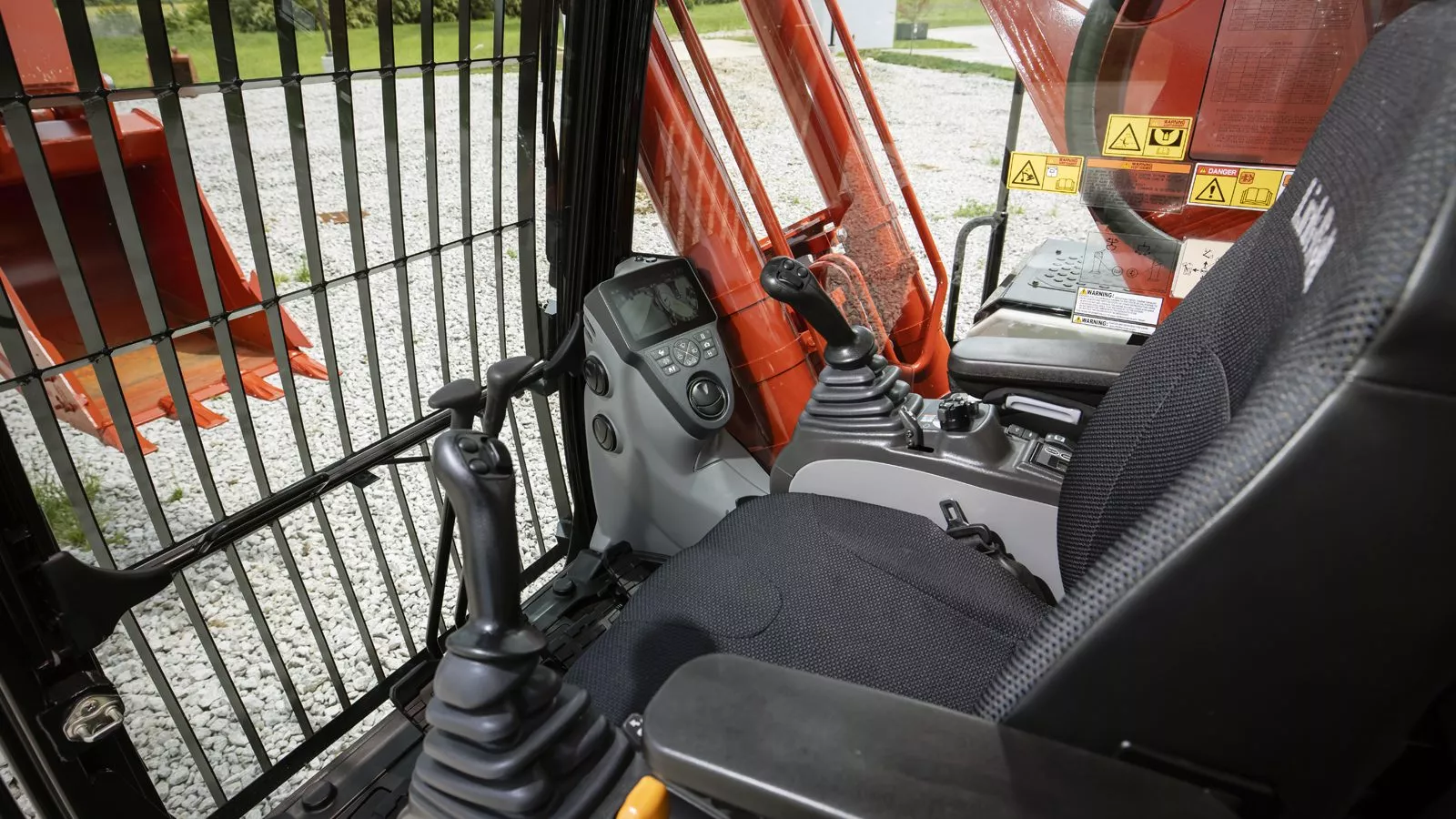

Warranty Details

Link-Belt Heavy Duty excavators offer industry-leading warranty coverage.

Tell Me More

210 X4 Heavy Duty
LBX Company Receives 2022 Contractors' Top New Products Award

Link-Belt 210 X4 Heavy Duty excavators have received the 2022 Contractors’ Top New Products Award from Equipment Today.

Learn More

210 X4 Heavy Duty
LBX Company Receives Top 100 New Products Award for Heavy Earthmoving Equipment

The Link-Belt 210 X4 Heavy Duty excavator have been awarded a place as Construction Equipment’s Top 100 New Products of 2022.

Learn More

210 X4 Heavy Duty
