250 X4 Heavy Duty – Link-Belt Excavators
250 X4 Heavy Duty

250 X4 Heavy Duty

SAE Net Horsepower
177 HP (132.1 kW)

Operating Weight
68,400 lbs (31.0 metric tons)


Specifications
Units US Metric
Operating Weight68,400 lbs31.0 metric tons
Engine MakeIsuzuIsuzu
Engine ModelAQ-4HK1XAQ-4HK1X
Net HP177 hp132.1 kW
Max Dig Depth17' 3" ft/in5.27 m
Max Working Height38' 1" ft/in11.61 m
Max Ground Clearance2' 1" ft/in0.65 m
Arm Force29,230 lbf130 kN
Bucket Digging Force39,570 lbf39570 kN
Bucket Capacity, SAE Heaped0.79 - 2.43 yd30.61 - 2.43 m3
Max Travel Speed2.7 mph4.4 km/h
Purpose Built

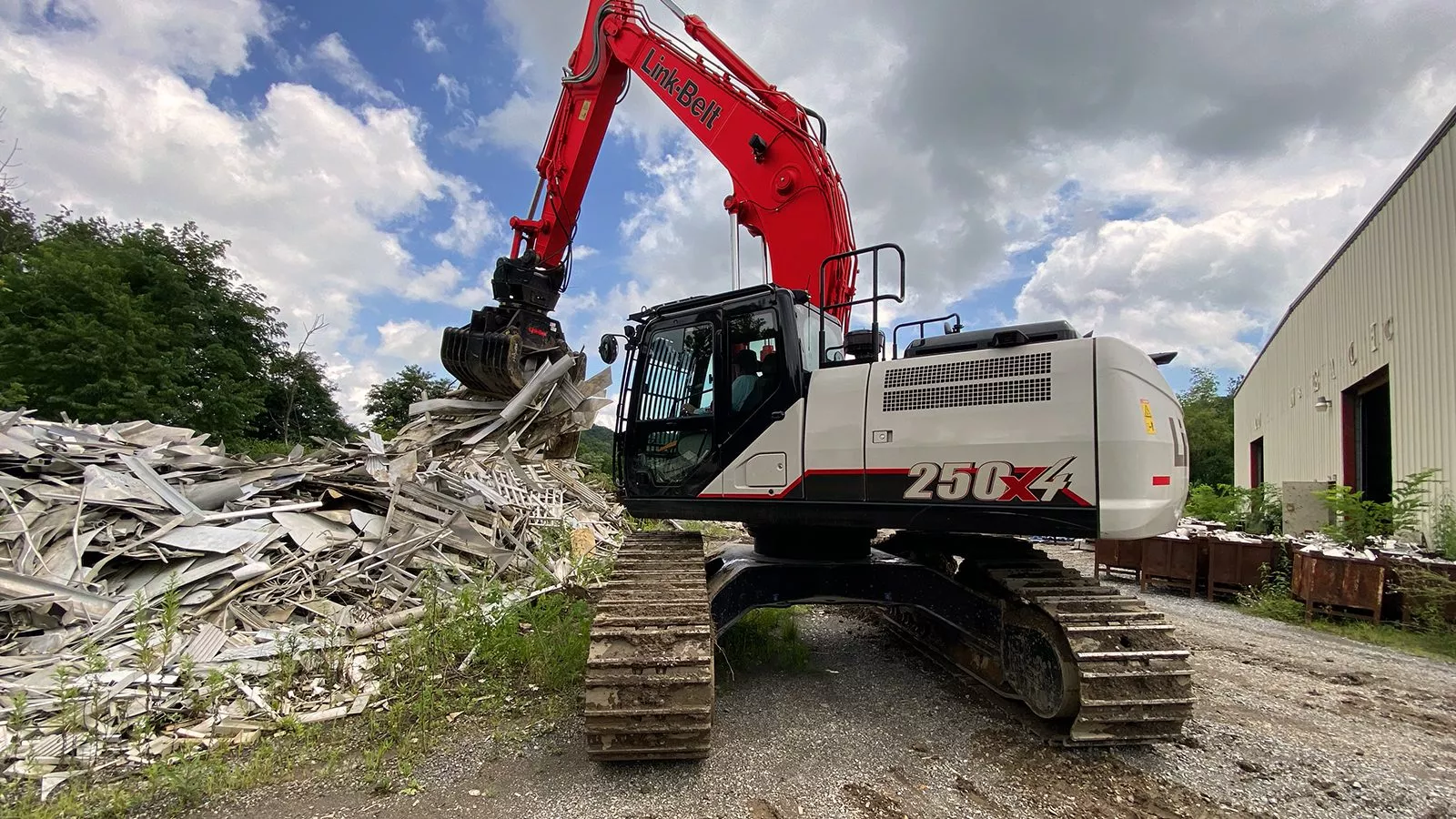

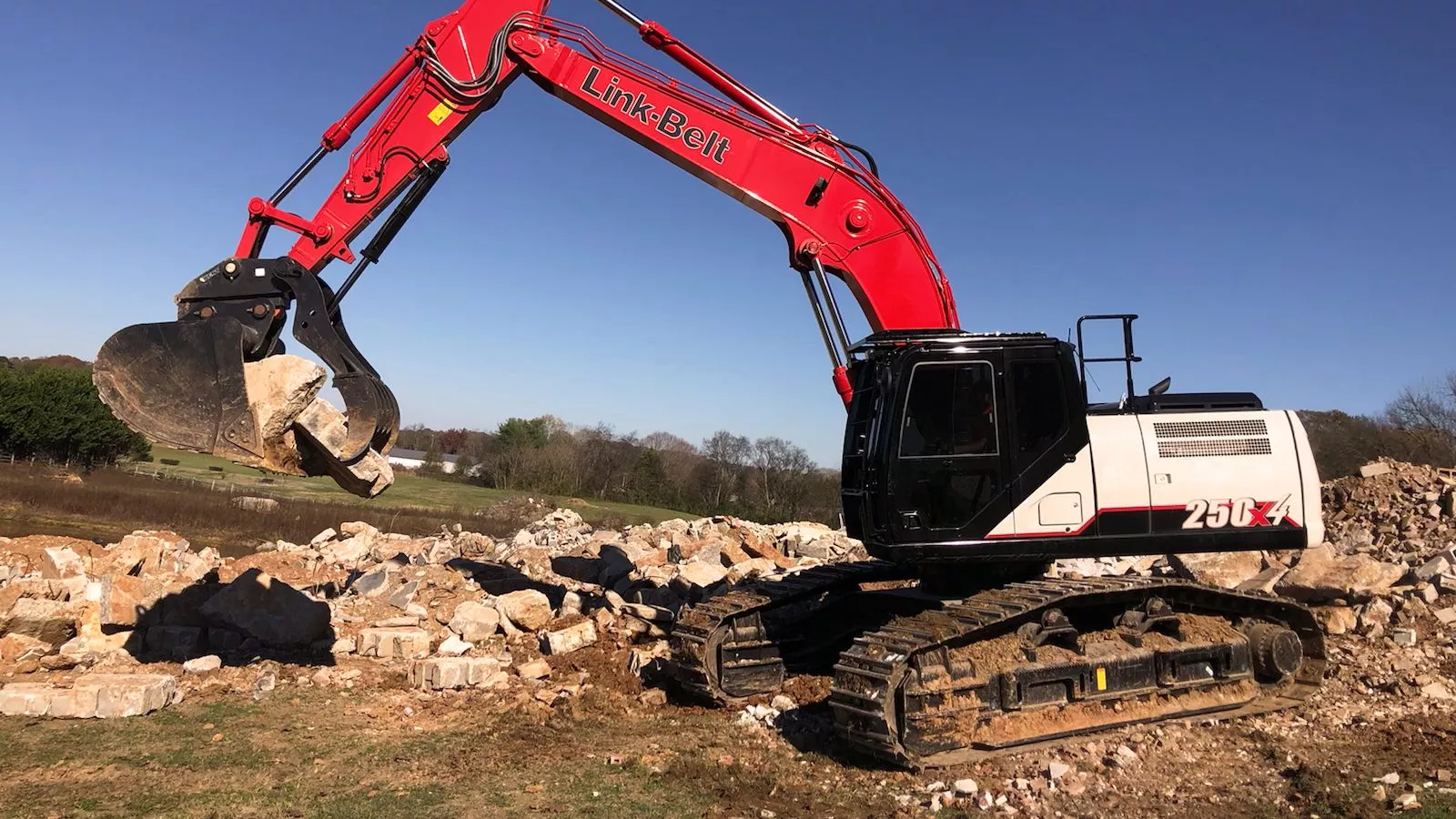

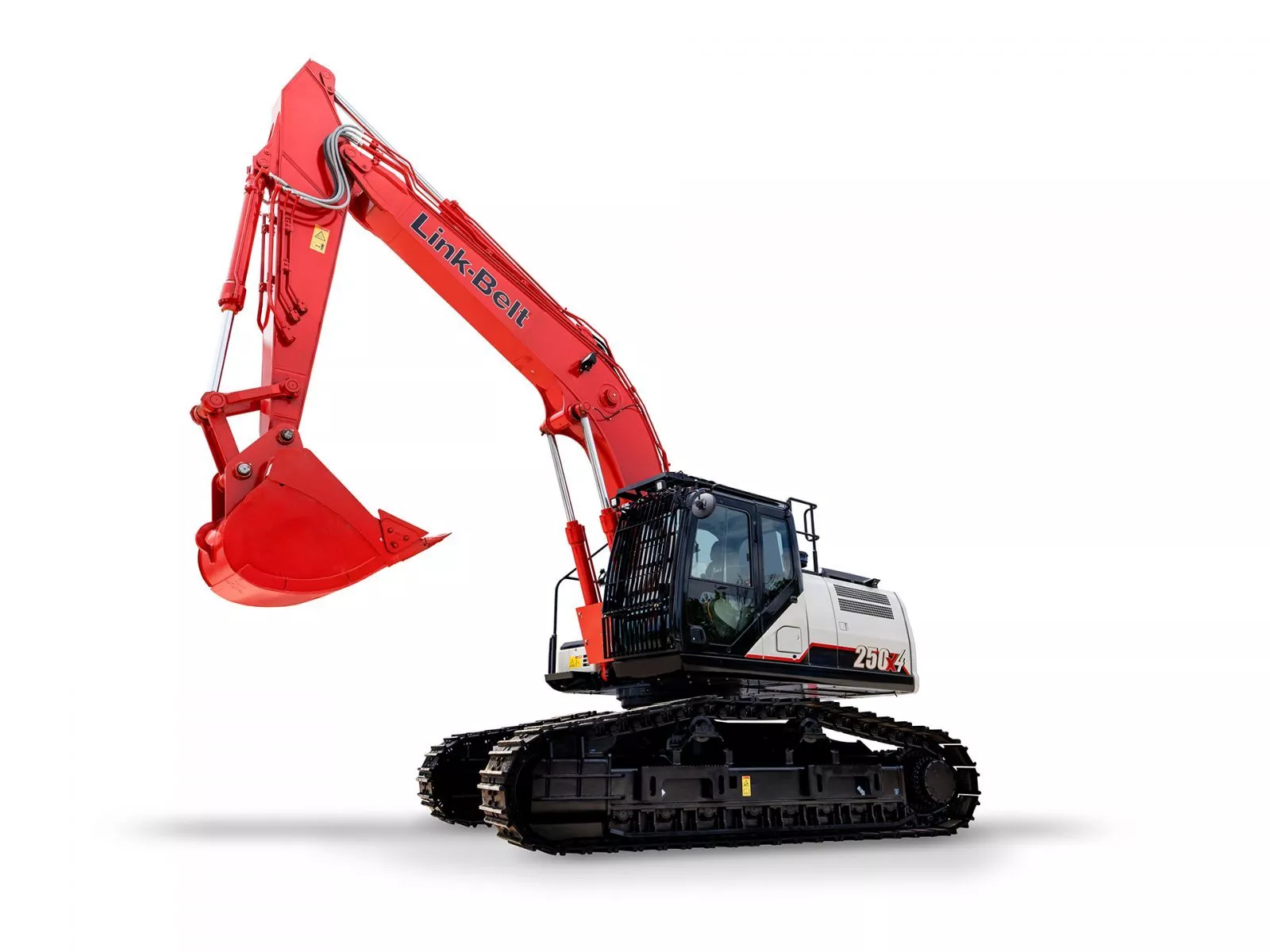

The Link-Belt 250 X4 Heavy Duty excavator is factory equipped with a high-wide and heavy-duty undercarriage with larger components for added durability, strength, and performance. Compared to our standard excavators, these models have an 11-17% wider stance and 40-50% higher ground clearance giving them excellent stability and increased lift capacities to handle the rugged work they were designed for.

250 X4 Heavy Duty
RemoteCARE®

RemoteCARE lets you remotely monitor and track machine location, operational performance, working status and periodic
maintenance requirements – now at no cost to you. For desktop and mobile!

Learn More

Warranty Details

Link-Belt Heavy Duty excavators offer industry-leading warranty coverage.

Tell Me More

250 X4 Heavy Duty
LBX Company Receives 2022 Contractors' Top New Products Award

Link-Belt 250 X4 Heavy Duty excavators have received the 2022 Contractors’ Top New Products Award from Equipment Today.

Learn More

250 X4 Heavy Duty
LBX Company Receives Top 100 New Products Award for Heavy Earthmoving Equipment

The Link-Belt 250 X4 Heavy Duty excavator have been awarded a place as Construction Equipment’s Top 100 New Products of 2022.
